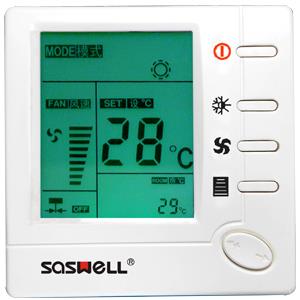

Senwell digital thermostat SAS803FCT-2 uses electronic logic circuit to compare room temperature with set temperature, and controls valves and fan coils according to the comparative results, so that the room temperature is at a constant value, in order to achieve temperature control and create a comfortable environment.
Senwell digital thermostat SAS803FCT-2 set room temperature correction coefficient setting, upper and lower temperature setting, fan coil operation mode setting, sleep function in one, widely used in commercial, industrial, civil buildings and villa group heating, cooling or the end of the year-round central air conditioning fan coil, valve control.
Senwell Digital Thermostat SAS803FCT-2 Specifications:
Dimensions: 86mm x 86mm x 15mm
Temperature control range: 5 to 35 -deg;C (adjustable)
Temperature-controlled accuracy: splusmn;1-deg;C
Temperature correction factor: -3 to 3 -deg;C
Supply voltage: 100-240VAC 50/60Hz
Refrigeration, heating valve maximum inductive current: 0.5A
Fan Maximum inductive load current: 2A
