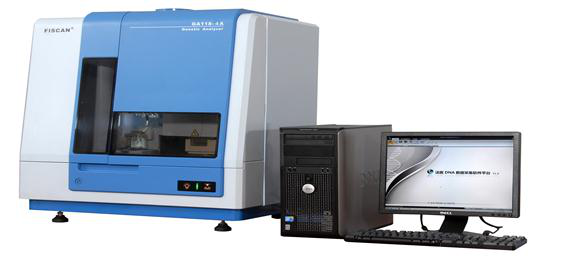

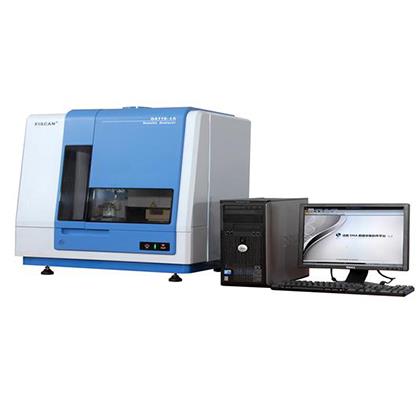

FISCAN® GA118-16A genetic analyzer is a special platform for forensic DNA detection based on the specific needs of forensic DNA laboratory in China. It is based on laser-induced-fluorescence detection STR multiplex amplification technology. It is specially designed for forensic DNA identification applications. It can be used for various DNA detection and analysis applications based on STR multiplex amplification technology. GA118-16A genetic analyzer can directly serve the front line of public security, reduce the cost of handling cases, promote the construction of forensic laboratories and DNA database in China, and fundamentally provide a comprehensive solution for the system construction, product maintenance and use of the special forensic DNA detection platform in China.
_Detection Mode: Laser Induced Fluorescence CCD Automatic Collection
_Detection wavelength range: Sp=530~650 NM
_DNA Separation: Capillary Electrophoresis; Number of Channels: N = 16
_Resolution: 5-color fluorescence real-time detection; Resolution R_1bp
_Sampling mode: automatic sampling; positioning accuracy P<0.3mm
_Maximum detection flux: En was greater than 16 (samples per hour) when fragment length was less than 500 bp.
_Temperature control index of detection process: temperature control range: room temperature to 65 C; temperature control precision T < 0.2 C
_Forensic DNA data acquisition and preprocessing software V1.0:
_Real-time collection, analysis and display of DNA Atlas data; automatic evaluation of spatial correction, spectral correction function and correction effect; automatic generation of DNA data files; automatic planning of sample operation; automatic monitoring of instrument platform; manual control of key components
